A Compressed fibre jointing with wire gauze insertion supplied with Graphite Finish. Used for general purpose application where conditions of temeperature and pressure are not too serve. .
IDENTITY COLOUR : GRAPHITED BLACK

TECHNICAL DATA
Recommended Max Temperature : 415%u02DAC
Recommended Max Pressure Kg./cm2 : 40 Kg/sq.cm.
Specification Compliance
IS-2712 - 1998
IS-2712 - 1979 Grade W / 3
IS 2712 - 1971 Grade C

Manufactured from selected quality of Asbestos Fibre and vulcanized with special rubber compound to meet with the exacting requirements of modern industry. Used for application against dry and wet steam water, gases, alkalies, oil at normal tempertaures, chemicals fuels etc. and general engineering. Style 39 can also be provided with wire gauze insertion in graphited finish.
IDENTITY COLOUR : ORANGE/GREY OR GRAPHITED

TECHNICAL DATA
Recommended Max Temperature : 440%u02DAC
Recommended Max Pressure Kg./cm2 : 80 Kg/sq.cm.
Specification Compliance
(Indian IS-2712 - 1998 Grade 0/2)
(IS-2712 - 1979 Grade W / 2)
(British BS 2815 - 1973 Grade B)

Manufactured from selected Asbestos Fibre and bonded with high grade binder compound, this product has a wide range of applications in the industrial field. Recommended against steam, neutral non flammable gases, dyes alkalies, fats, oils, alcohols, motor fuels and such other engineering service conditions which do not warrant the use of as High Grade material such as Style 54 SUPER .
IDENTITY COLOUR : BROWN/GREY OR GRAPHITED FINISH METALLIC & NON-METALLIC

TECHNICAL DATA
Recommended Max Temperature : 440 0 C
Recommended Maximum Pressure 80 Kg/sq.cm.
Specification Compliance
(IS 2712 - 1998 Grade W/2)
(BS 2815 - 1973 Grade B)

Manufactured from excellent quality of Chrysotile Asbestos Fibre and raw materials, the blend being intimately mixed with heat resisting rubber compounds under special process, to ensure maximum stability against high pressure and temperatures. Though primarily a super heated steam Jointing it is also recommended against saturated Steam, Oxygen, petroleum distillates, oils and fats, fuels, internal combustion engines, hydrocarbons, alcohols, solvents, lyes, etc. It is popularly used in MARINE ENGINES, electricity generating sets etc.
IDENTITY COLOUR : YELLOW/GREY OR GRAPHITED

TECHNICAL DATA
Recommended Max Temperature : 550 0 C
Recommended Maximum Pressure 150 Kg/sq.cm.
Specification Compliance
(Indian IS 2712 - 1998 Grade W/1)
(IS 2712 - 1971 Grade A/S)
(DGS & DG/MISC/ 81-C item 12 (a) Special Quality)
(British BS 2815 - 1973 Grade A)

A Compressed Asbestos Fibre Jointing Graphited embedded with a strong reinforcement of steel wire gauze, THE SUPER METALLIC gasket sheet is superior in performance over other forms of Jointing Sheets where severe physical conditions of High Pressure and temperature have to be resisted. It is effectively used under rapidly changing operating conditions of pressure, where vibrations are experienced, where the flange of the gasket joint is narrow, in diesel exhaust manifold, cylinder head gaskets, internal combustion engines andAir Compressors.
IDENTITY COLOUR : GRAPHITED BLACK

TECHNICAL DATA
Recommended Max Temperature : 600 0 C
Recommended Maximum Pressure 160 Kg/sq.cm.

This is a high grade jointing sheet manufactured from superior quality asbestos bonded with special grade rubber and chemicals. This is a high tech CAF jointing sheet specially designed for extreme conditions. This is developed only in metallic variety with special metallic wire net to prevent galvanic corrosion and special grade of graphite is used on the surface which acts as anti-release agent. This gasket is resistant not only to high temperature but also to extreme pressure surge which is a common factor in main steam line. This CAF jointing is suitable for super heated and saturated steam, hydrocarbon, sulphurous compounds phenols, refrigerants, alkalis etc.
IDENTITY COLOUR : GRAPHITED BLACK

TECHNICAL DATA
Recommended Max Temperature : 600 0 C
Recommended Maximum Pressure 225 Kg/sq.cm.

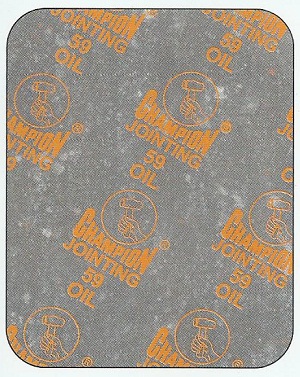

A high grade Asbestos Fibre Jointing bonded with a sophisticated compound, this specialised jointing withstands the most exacting demands of oil and Petrochemicals plants, solvents refrigerator, oil etc. Used in pipe lines and apparatus of the petrochemical fields, petroleum distillates, oil and petroleum refining industries. It is also recommended in industrial processes with high contents of aromatic substances, sulphurous compounds, chloric hydrocarbons, phenols, refrigerants, etc. Use of oil jointing sheet assures safety and economy even on critical working conditions. The jointing gives satisfactory services against steam also.
IDENTITY COLOUR : DARK GREY

TECHNICAL DATA
Recommended Max Temperature : 550 0 C
Recommended Maximum Pressure 150 Kg/sq.cm.
Specification Compliance
(Indian IS 2712 - 1998 Grade 0/1)
(IS 2712 - 1971 Grade A/O)
(DEFENCE TS RED/71/59)
(British BS 1832-1972)

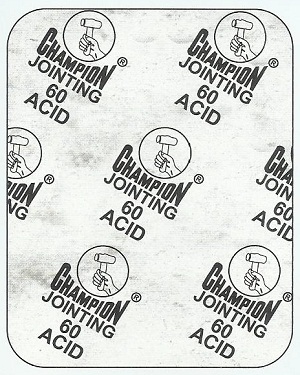

This is a specialised Asbestos Fibre Jointing Sheet which is intimately bonded with Acid resisting compound, to withstand the corrosive action of acids and chemicals. Recommended for use against hot concentrated organic, Inorganic and mineral acids including hydrochloric, sulphuric (oleum) and nitric acids, under service conditions of temperature and pressures commonly encountered in Chemical Industries.
IDENTITY COLOUR : CREAM/LIGHT GREY

TECHNICAL DATA
Recommended Max Temperature : 210 0 C
Recommended Maximum Pressure 150 Kg/sq.cm.
Specification Compliance
(Indian Is 2712 - 1998 Grade A/1)

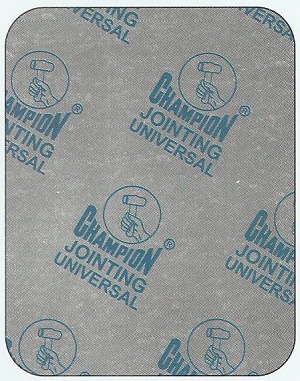

This is a superior grade jointing sheet manufactured from high quality chrysotile asbestos bonded with special grade NBR binder. This is specially designed CAF jointing sheet for application over an unlimited range of critical application. This hitech CAF jointing is suitable for hydrocarbon, fuel oil, solvent, petroleum distillates, alcohol, aromatic substances, phenols, refrigerants, alkalis etc.
IDENTITY COLOUR : DARK GREY

TECHNICAL DATA
Recommended Max Temperature : 600 0 C
Recommended Maximum Pressure 200 Kg/sq.cm.
Specification Compliance
(IS 2712 - 1998 Grade W/1 & 0/1)
